Adjustable clamp GFZ for tubes Ø30mm
| Quantity | Unit price |
|---|---|
| To 9 |
€7.14*
|
| To 49 |
€6.93*
|
| From 50 |
€6.57*
|
available immediately
Product number:
CON30RR-GFZ
Product information "Adjustable clamp GFZ for tubes Ø30mm"

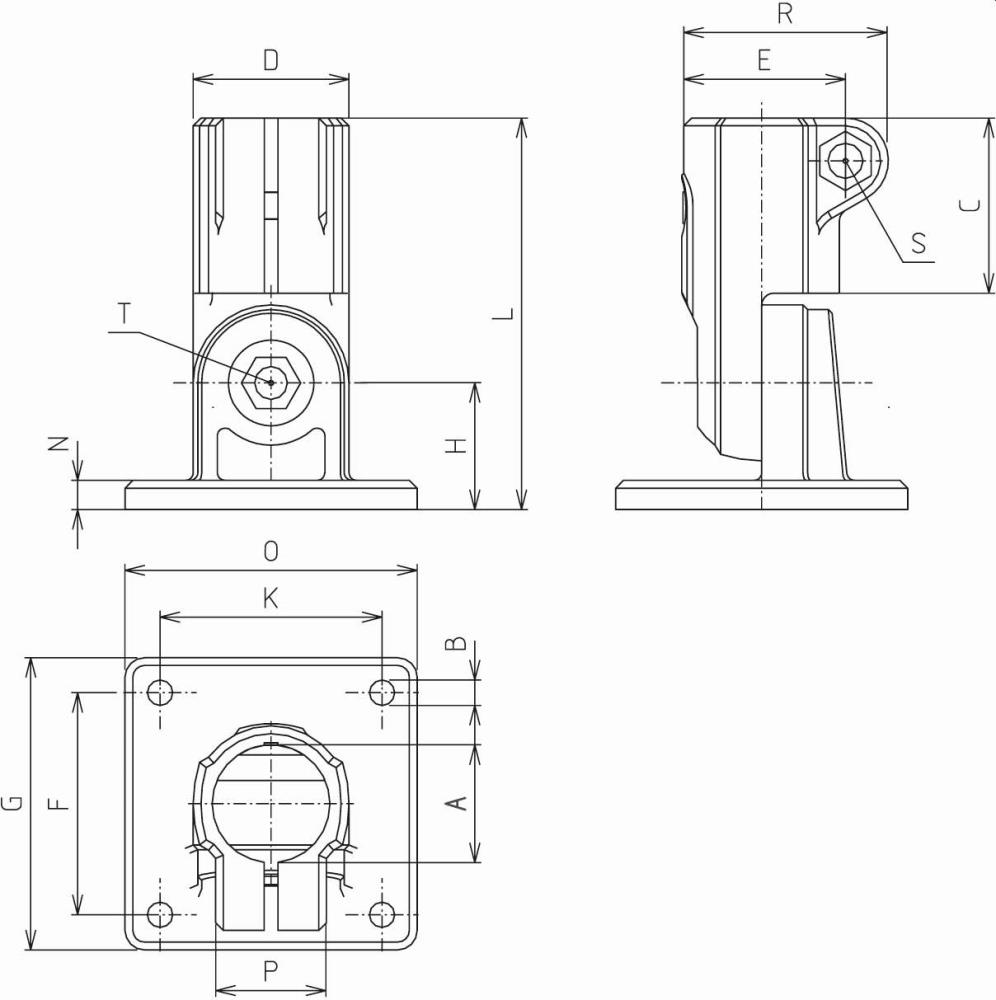

Clamp A: 30mm (reducing sleeves to 25mm and 20mm are available separately)
W: 6.5mm
C: 45mm
D: 40mm
E: 41.5mm
F: 60mm
W: 75mm
H: 32.5mm
K: 60mm
L: 100.5mm
N: 7.5mm
U: 75mm
P: 28.5mm
R: 52.5mm
S: M8
Weight: 185g
Tip:
You can find our round carbon tubes with matching outside diameters here: 30mm / 25mm / 20mm.
And here you will find our matching carbon square tubes.
