Adjustable clamp GWZ for tubes Ø30mm
| Quantity | Unit price |
|---|---|
| To 9 |
€6.78*
|
| To 49 |
€6.58*
|
| From 50 |
€6.24*
|
available immediately
Product number:
CON30RR-GWZ
Product information "Adjustable clamp GWZ for tubes Ø30mm"

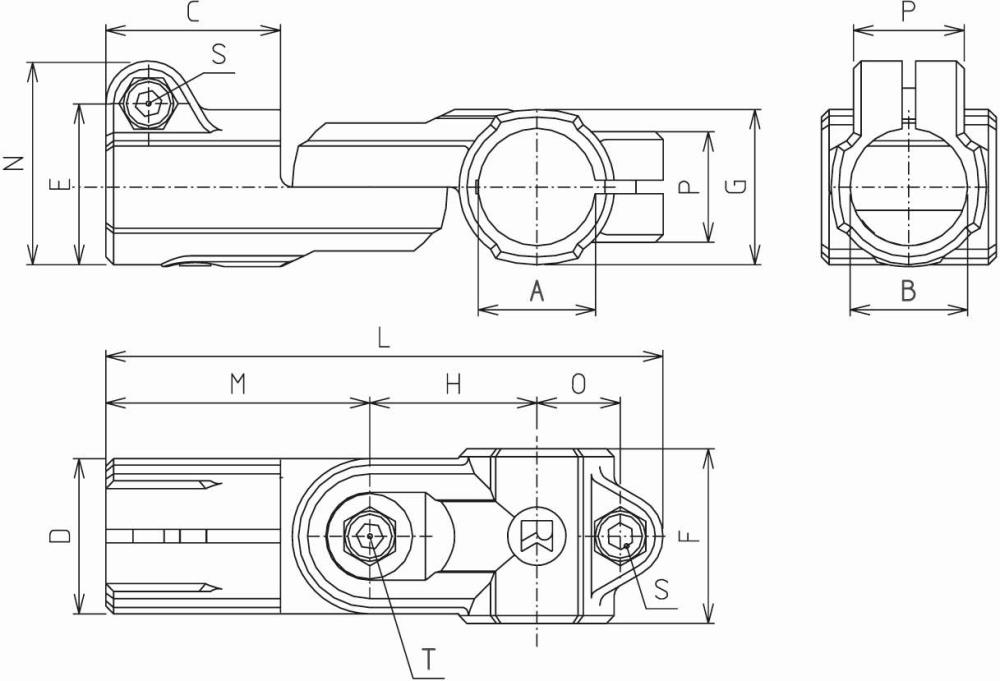

Clamping A+B: 30mm (reducing sleeves to 25mm and 20mm are available separately)
C: 45mm
D: 40mm
E: 41.5mm
F: 45mm
G: 40mm
H: 43mm
L: 143.5mm
M: 68mm
N: 52.5mm
O: 32.5mm
P: 28.5mm
S: M8
Weight: 178g
Tip:
You can find our round carbon tubes with matching outside diameters here: 30mm / 25mm / 20mm.
And here you will find our matching carbon square tubes.
