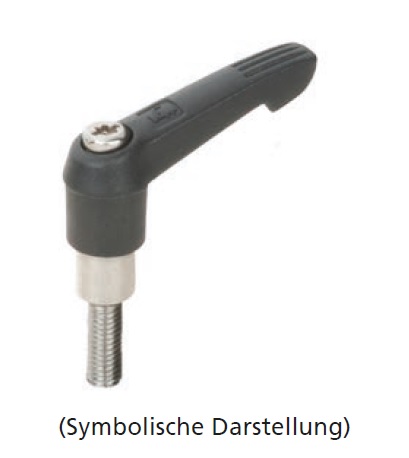

The plastic elements can be retrofitted with the clamping lever. This is done by simply replacing the cylinder screws.By lifting the handle, the serration becomes free and the clamping lever can be swiveled into the best clamping position. When you let go, the handle automatically snaps back into place.Material: Handle made of PA, black, screw insert made of stainless steelA: 40mmB: 26mmD: M6E: 10mmH: 18mmK: 10mmL: 3,5mmM: 14,5mm

Clamping A: 18mm (reducing sleeves to 16mm, 15mm, 14mm and 12mm are available separately)B: 5,3mmC: 18mmD: 25mmE: 30mmF: 30,5mmG: 35mmH: 40mmK: 32mmL: 39,5mmM: 50mmN: 5mmS: M6Weight: 30gTipp: You can find our round carbon tubes with matching outside diameters here: 18mm / 16mm / 15mm / 14mm / 12mm

Clamping A: 18mm (reducing sleeves to 16mm, 15mm, 14mm and 12mm are available separately)B: 5,3mmC: 26,5mmD: 26mmE: 34mmG: 45mmK: 30mmL: 32mmM: 45mmN: 5mmP: 21mmR: 24,5mmS: M6Weight: 30gTipp: You can find our round carbon tubes with matching outside diameters here: 18mm / 16mm / 15mm / 14mm / 12mm

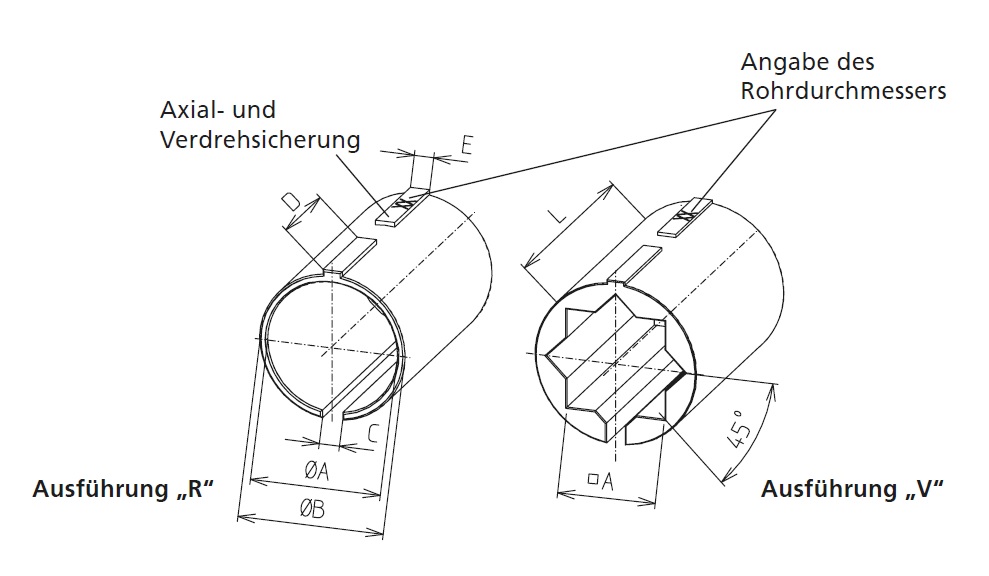

Version RReducing sleeve for clamping round tubes with Ø12mm in all clamping pieces with Ø18mm.A: 12,25mmB: 18mmC: 2,5mmD: 11,9mmE: 2,4mmL: 30mmTipp: You can find our round carbon tubes with matching outside diameters here: 18mm / 16mm / 15mm / 14mm / 12mm

Version RReducing sleeve for clamping round tubes with Ø14mm in all clamping pieces with Ø18mm.A: 14,25mmB: 18mmC: 2,5mmD: 11,9mmE: 2,4mmL: 30mmTipp: You can find our round carbon tubes with matching outside diameters here: 18mm / 16mm / 15mm / 14mm / 12mm

Version RReducing sleeve for clamping round tubes with Ø15mm in all clamping pieces with Ø18mm.A: 15,25mmB: 18mmC: 2,5mmD: 11,9mmE: 2,4mmL: 30mmTipp: You can find our round carbon tubes with matching outside diameters here: 18mm / 16mm / 15mm / 14mm / 12mm

Version RReducing sleeve for clamping round tubes with Ø16mm in all clamping pieces with Ø18mm.A: 16,25mmB: 18mmC: 2,5mmD: 11,9mmE: 2,4mmL: 30mmTipp: You can find our round carbon tubes with matching outside diameters here: 18mm / 16mm / 15mm / 14mm / 12mm

Clamp A: 18mm (reducing sleeves to 16mm, 15mm, 14mm and 12mm are available separately)B: 5,3mmC: 30mmD: 25mmE: 26,5mmF: 40mmG: 50mmH: 20mmK: 0mmL: 65mmN: 5mmO: 35mmP: 21mmR: 34mmS: M6Weight: 55gTipp: You can find our round carbon tubes with matching outside diameters here: 18mm / 16mm / 15mm / 14mm / 12mm

Clamping A+B: 18mm (reducing sleeves to 16mm, 15mm, 14mm and 12mm are available separately)C: 30mmD: 25mmE: 26,5mmF: 30mmH: 45mmL: 90mmM: 45mmP: 21mmR: 34mmS: M6Weight: 66gTipp: You can find our round carbon tubes with matching outside diameters here: 18mm / 16mm / 15mm / 14mm / 12mm

Clamping A+B: 18mm (reducing sleeves to 16mm, 15mm, 14mm and 12mm are available separately)C: 30mmD: 25mmE: 26,5mmF: 30mmG: 25mmH: 27,5mmL: 94mmM: 45mmN: 34mmO: 14mmP: 21mmS: M6Weight: 67gTipp: You can find our round carbon tubes with matching outside diameters here: 18mm / 16mm / 15mm / 14mm / 12mm

Clamping A+B: 18mm (reducing sleeves to 16mm, 15mm, 14mm and 12mm are available separately)C: 20mmD: 30mmK: 48mmL: 63mmP: 21mmR: 48mmS: M6Weight: 50gTipp: You can find our round carbon tubes with matching outside diameters here: 18mm / 16mm / 15mm / 14mm / 12mm

Clamping A+B: 18mm (reducing sleeves to 16mm, 15mm, 14mm and 12mm are available separately)C: 34mmD: 25mmL: 65mmP: 21mmQ: 50mmR: 14mmS: M6Weight: 28gTipp: You can find our round carbon tubes with matching outside diameters here: 18mm / 16mm / 15mm / 14mm / 12mm

Clamping A+B: 18mm (reducing sleeves to 16mm, 15mm, 14mm and 12mm are available separately)C: 30,5mmD: 25mmE: 30mmF: 34mmG: 25mmH: 26,5mmK: 55,5mmL: 64,5mmM: 43mmP: 21mmR: 49,5mmS: M6Weight: 44gTipp: You can find our round carbon tubes with matching outside diameters here: 18mm / 16mm / 15mm / 14mm / 12mm

The plastic elements can be retrofitted with the clamping lever. This is done by simply replacing the cylinder screws.By lifting the handle, the serration becomes free and the clamping lever can be swiveled into the best clamping position. When you let go, the handle automatically snaps back into place.Material: Handle made of PA, black, screw insert made of stainless steelA: 65mmW: 35mmD: M8E: 14mmH: 25mmK: 13mmL: 4mmM: 19.5mm

Clamping A: 30mm (reducing sleeves to 25mm and 20mm are available separately)W: 6.5mmC: 30mmD: 40mmE: 45mmF: 50mmG: 50mmH: 60mmK: 52.8mmL: 62.5mmM: 80mmN: 8mmS: M8Weight: 84gTip:You can find our round carbon tubes with matching outside diameters here: 30mm / 25mm / 20mm.And here you will find our matching carbon square tubes.

Clamping A: 30mm (reducing sleeves to 25mm and 20mm are available separately)B: 6.5mmC: 41.5mmD: 40mmE: 52.5mmG: 60mmK: 40mmL: 50mmM: 60mmN: 8mmP: 28.5mmR: 39mmS: M8Weight: 75gTip:You can find our round carbon tubes with matching outside diameters here: 30mm / 25mm / 20mm.And here you will find our matching carbon square tubes.

Version RReducing sleeve for clamping round tubes with Ø20mm in all clamping pieces with Ø30mm.A: 20mmB: 30mmC: 3,5mmD: 18,9mmE: 3,4mmL: 45mmTip:You can find our round carbon tubes with matching outside diameters here: 30mm / 25mm / 20mm.And here you will find our matching carbon square tubes.

Version RReducing sleeve for clamping round tubes with Ø25mm in all clamping pieces with Ø30mm.A: 25mmW: 30mmC: 3.5mmD: 18.9mmE: 3.4mmL: 45mmTip:You can find our round carbon tubes with matching outside diameters here: 30mm / 25mm / 20mm.And here you will find our matching carbon square tubes.

Version VReducing sleeve for clamping square tubes with a dimension of 20mm x 20mm in all clamping pieces with Ø30mm.A: 20mmW: 30mmC: 3.5mmD: 18.9mmE: 3.4mmL: 45mmTip:You can find our round carbon tubes with matching outside diameters here: 30mm / 25mm / 20mm.And here you will find our matching carbon square tubes.

Clamp A: 30mm (reducing sleeves to 25mm and 20mm are available separately)W: 6.5mmC: 45mmD: 40mmE: 41.5mmF: 60mmW: 75mmH: 32.5mmK: 60mmL: 100.5mmN: 7.5mmU: 75mmP: 28.5mmR: 52.5mmS: M8Weight: 185gTip:You can find our round carbon tubes with matching outside diameters here: 30mm / 25mm / 20mm.And here you will find our matching carbon square tubes.

Clamping A+B: 30mm (reducing sleeves to 25mm and 20mm are available separately)C: 45mmD: 40mmE: 41.5mmF: 40mmH: 68mmL: 136mmM: 68mmP: 28.5mmR: 52.5mmS: M8Weight: 194gTip:You can find our round carbon tubes with matching outside diameters here: 30mm / 25mm / 20mm.And here you will find our matching carbon square tubes.

Clamping A+B: 30mm (reducing sleeves to 25mm and 20mm are available separately)C: 45mmD: 40mmE: 41.5mmF: 45mmG: 40mmH: 43mmL: 143.5mmM: 68mmN: 52.5mmO: 32.5mmP: 28.5mmS: M8Weight: 178gTip:You can find our round carbon tubes with matching outside diameters here: 30mm / 25mm / 20mm.And here you will find our matching carbon square tubes.

Clamping A+B: 30mm (reducing sleeves to 25mm and 20mm are available separately)C: 33mmD: 45mmK: 72mmL: 99mmP: 28.5mmR: 77mmS: M8Weight: 132gTip:You can find our round carbon tubes with matching outside diameters here: 30mm / 25mm / 20mm.And here you will find our matching carbon square tubes.

Clamping A+B: 30mm (reducing sleeves to 25mm and 20mm are available separately)C: 52.5mmD: 40mmL: 95mmP: 28.5mmQ: 73mmR: 22.8mmS: M8Weight: 87gTip:You can find our round carbon tubes with matching outside diameters here: 30mm / 25mm / 20mm.And here you will find our matching carbon square tubes.

Clamping A+B: 30mm (reducing sleeves to 25mm and 20mm are available separately)C: 45mmD: 40mmE: 45mmF: 52.5mmG: 40mmH: 41.5mmK: 85mmL: 97.5mmM: 65mmP: 28.5mmR: 75.5mmS: M8Weight: 115gTip:You can find our round carbon tubes with matching outside diameters here: 30mm / 25mm / 20mm.And here you will find our matching carbon square tubes.

Clamping B: 30mm (reducing sleeves to 25mm and 20mm are available separately)For clamping A, the appropriate reducing insert for clamping round Ø30mm is included.S: M8For additional dimensions, see drawingWeight: 189g + reducing insert approx. 10gTip:You can find our round carbon tubes with matching outside diameters here: 30mm / 25mm / 20mm.And here you will find our matching carbon square tubes.

Clamping A+B: 30mm (reducing sleeves to 25mm and 20mm are available separately)Weight: 117gTip:You can find our round carbon tubes with matching outside diameters here: 30mm / 25mm / 20mm.And here you will find our matching carbon square tubes.

Clamp A: 30mmWeight: 84gTip: Here you will find our matching carbon square tubes.

Clamping A: 30mm (reducing sleeves to 25mm and 20mm are available separately)W: 6.5mmC: 41.5mmD: 40mmE: 52.5W: 60mmK: 40mmL: 50mmM: 60mmN: 8mmP: 28.5mmR: 39mmS: M8Weight: 75gTip:You can find our round carbon tubes with matching outside diameters here: 30mm / 25mm / 20mm.And here you will find our matching carbon square tubes.

Clamping A+B: 30mmWeight: 171gTip: Here you will find our matching carbon square tubes.
